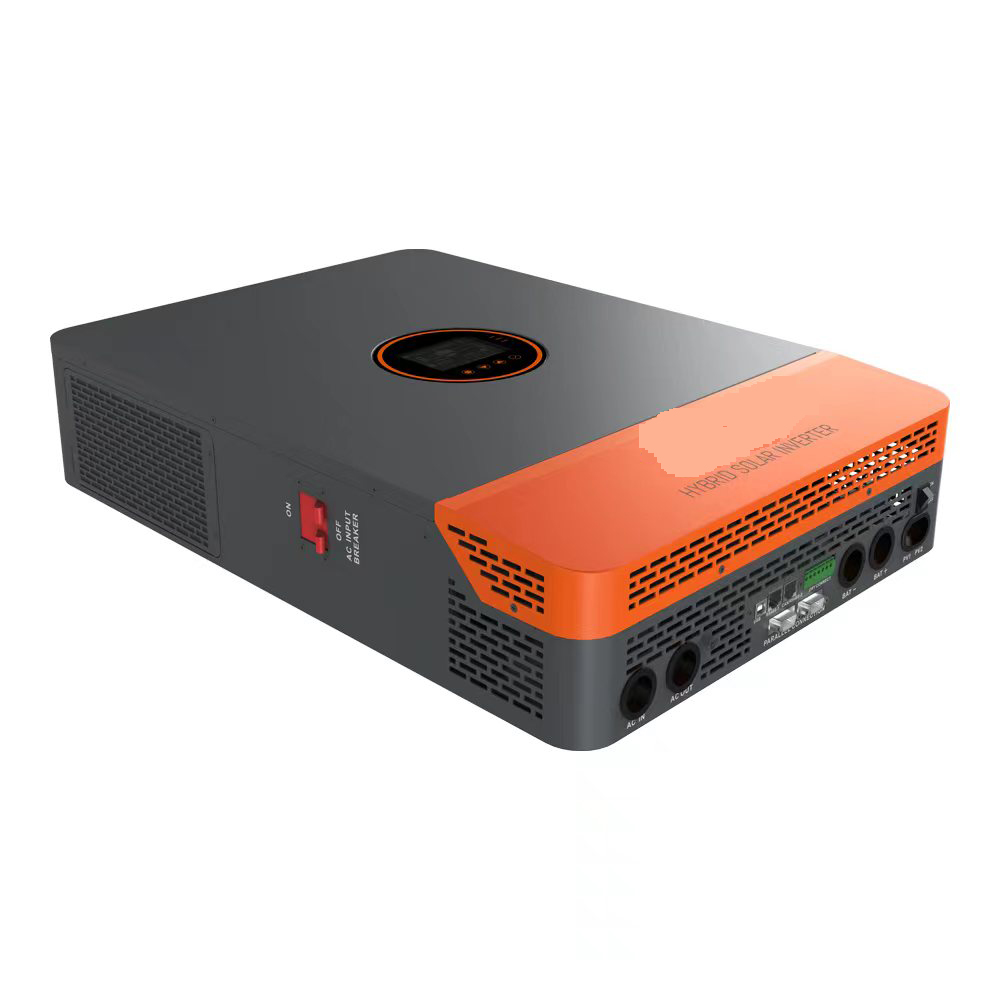

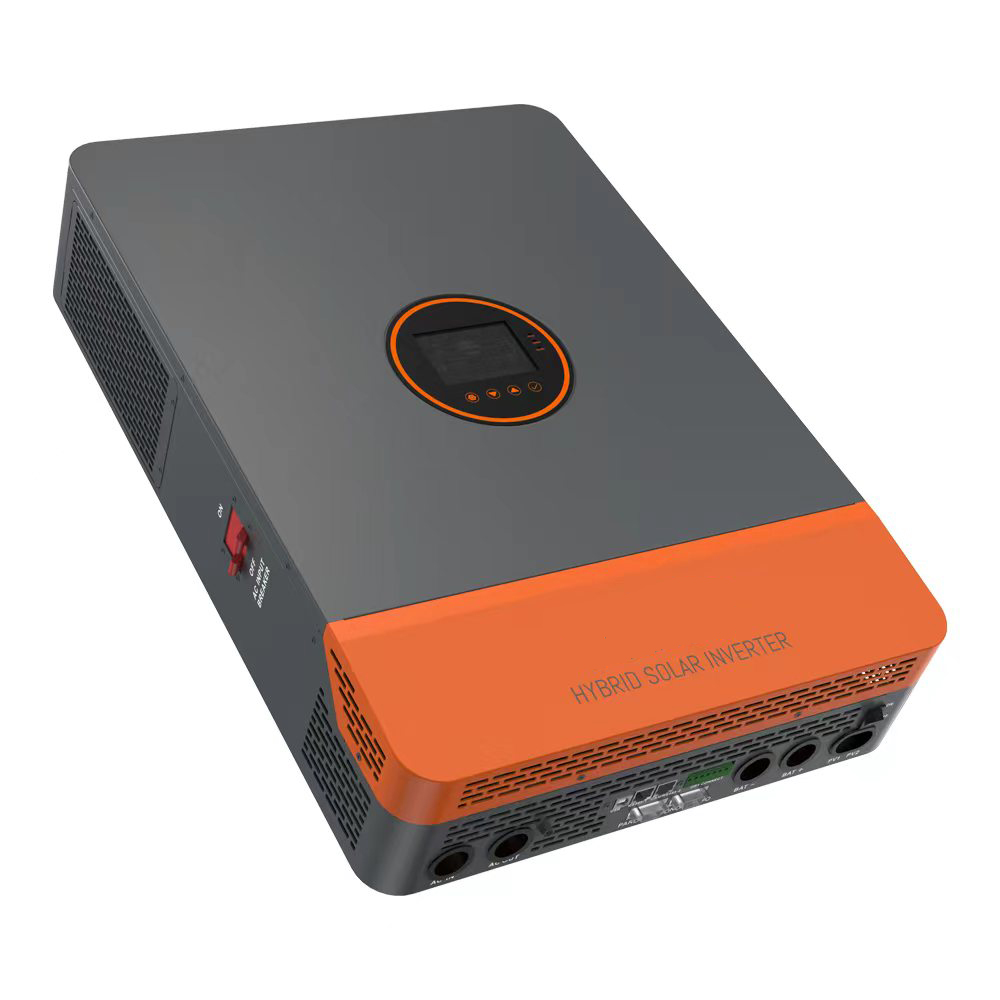

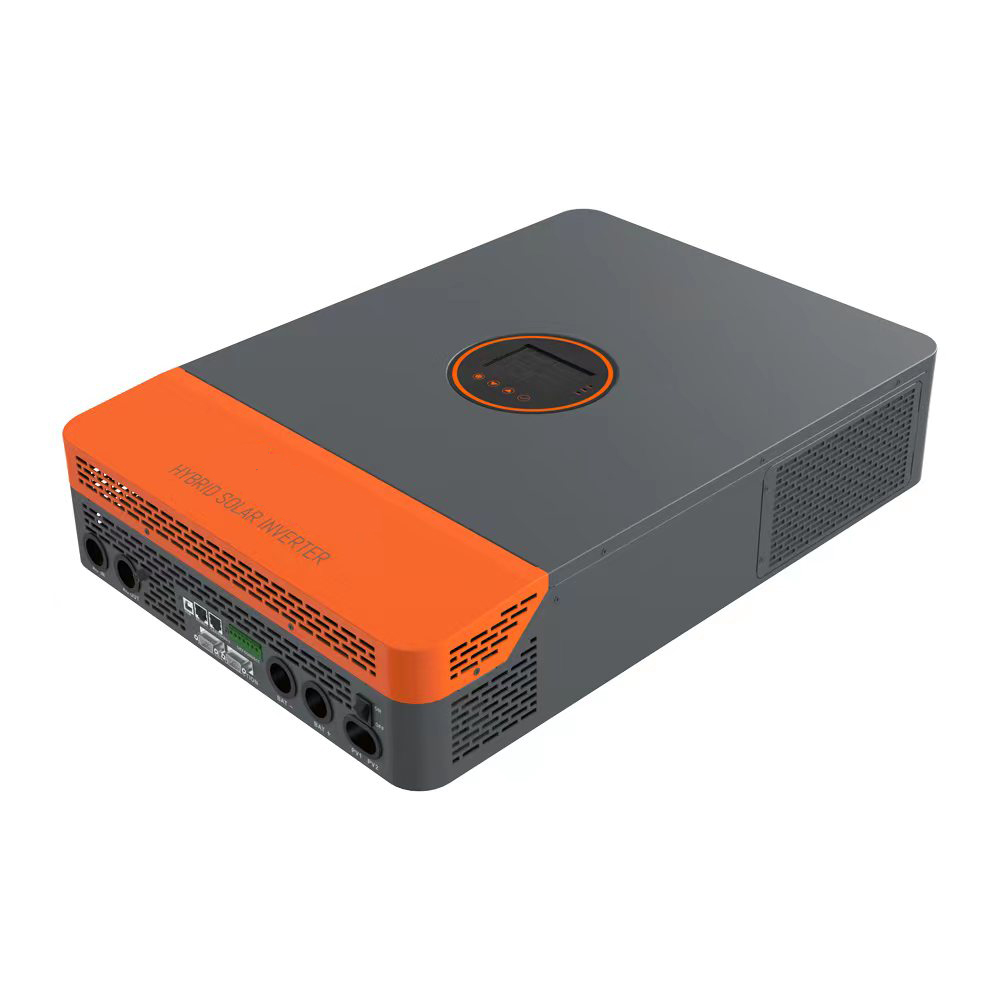

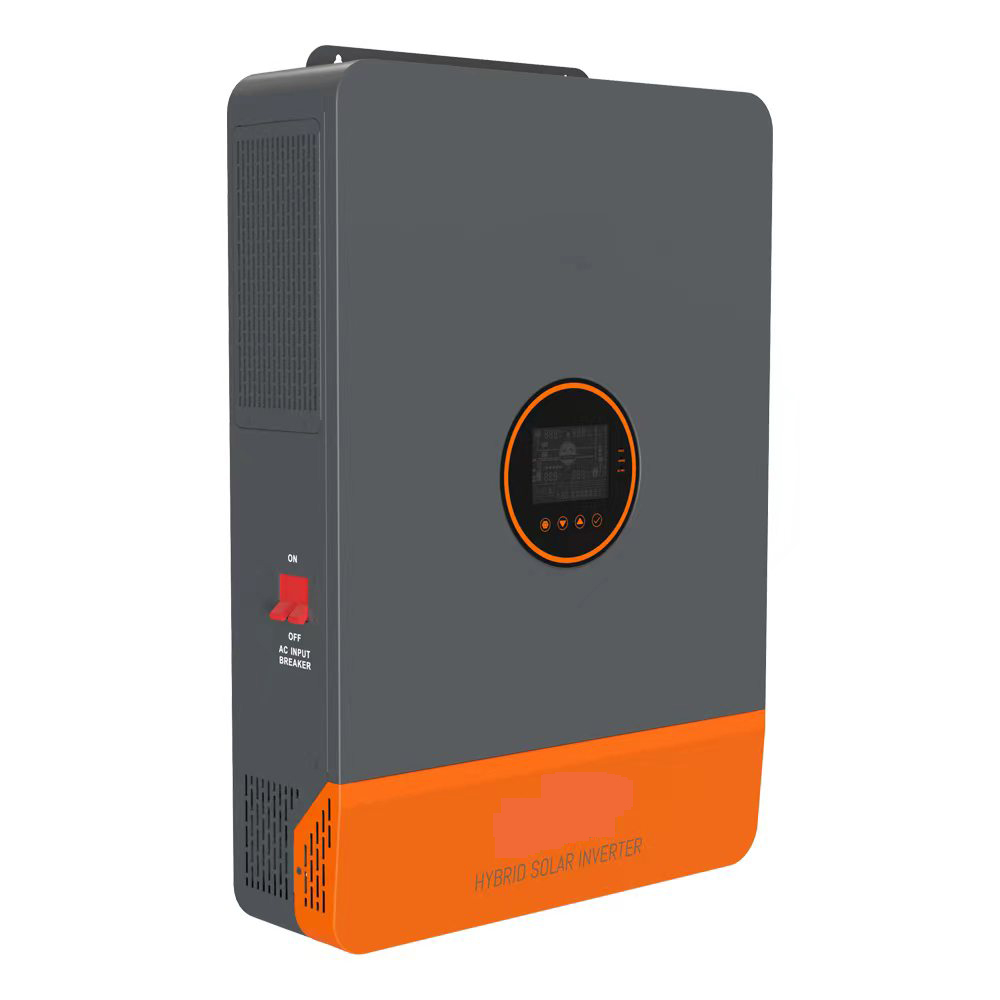

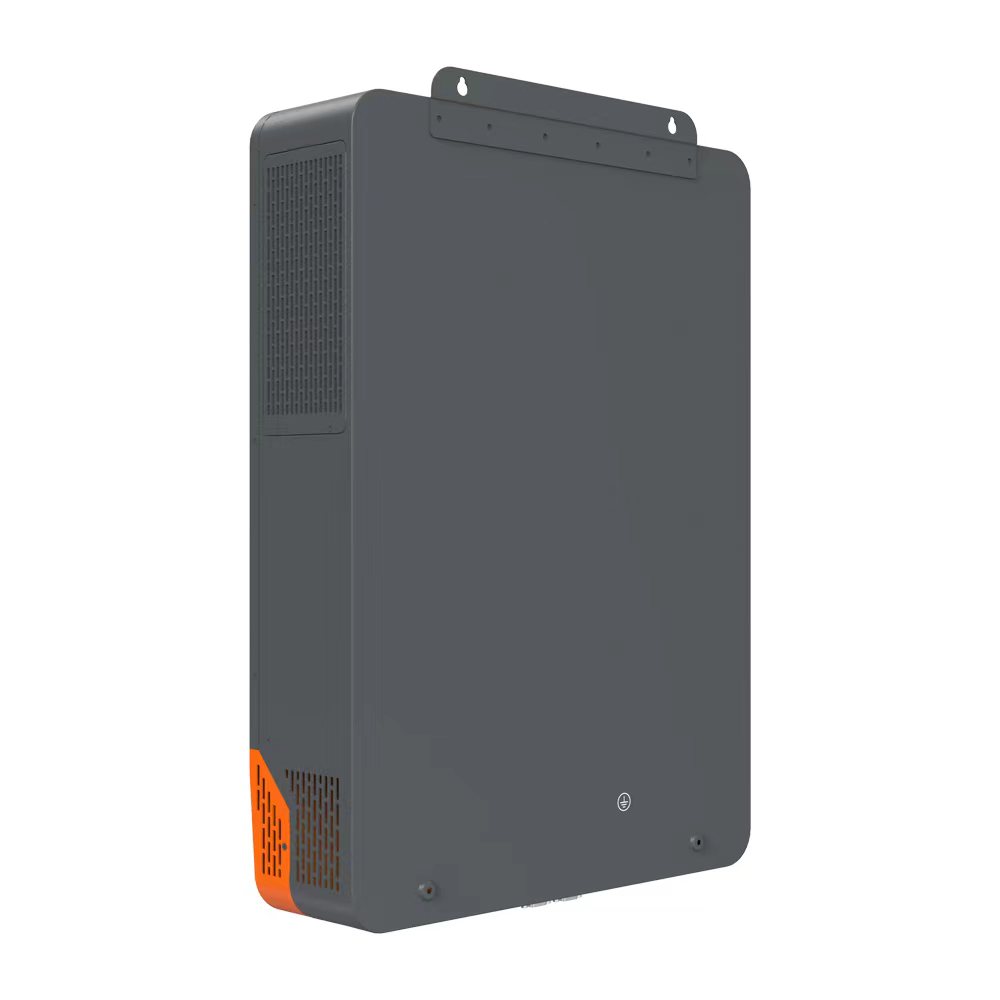

10KW Solar inverter separate phase for US Market US Standard
Product ID : EL131
Product Attributes :
⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power
supply access can trigger the activation of the li-ion battery.
⚫ Support split-phase and single-phase pure sine wave output.
⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power
charging/carrying capacity functions.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted
to high power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV
charging.
⚫ With the time-slot charging and discharging setting function, you can set the time period for
cutting in/out of mains charging and switch the time period between battery discharging and
mains bypass power supply mode.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply
function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and
operation status.
⚫ 360° protection with complete short circuit protection, over current protection, over under voltage
protection, overload protection, backfill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
Product Description
System connection diagram

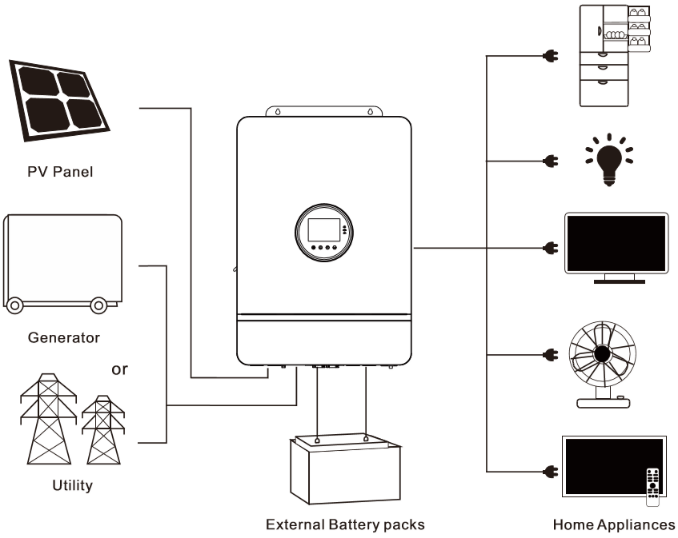

The diagram below shows the system application scenario of this product. A complete system
consists of the following components:
1. PV modules: converts light energy into DC energy, which can be used to charge the battery via
an inverter or directly inverted into AC power to supply the load.
2. Utility grid or generator: connected to the AC input, it can supply the load and charge the
battery at the same time. The system can also operate generally without the mains or generator
when the battery and the PV module power the load.
3. Battery: The role of the battery is to ensure the regular power supply of the system load when
the solar energy is insufficient and there is no mains power.
4. Home load: Various household and office loads can be connected, including refrigerators,
lamps, televisions, fans, air conditioners, and other AC loads.
5. Inverter: The energy conversion device of the whole system.
The actual application scenario determines the specific system wiring method
