PRODUCT

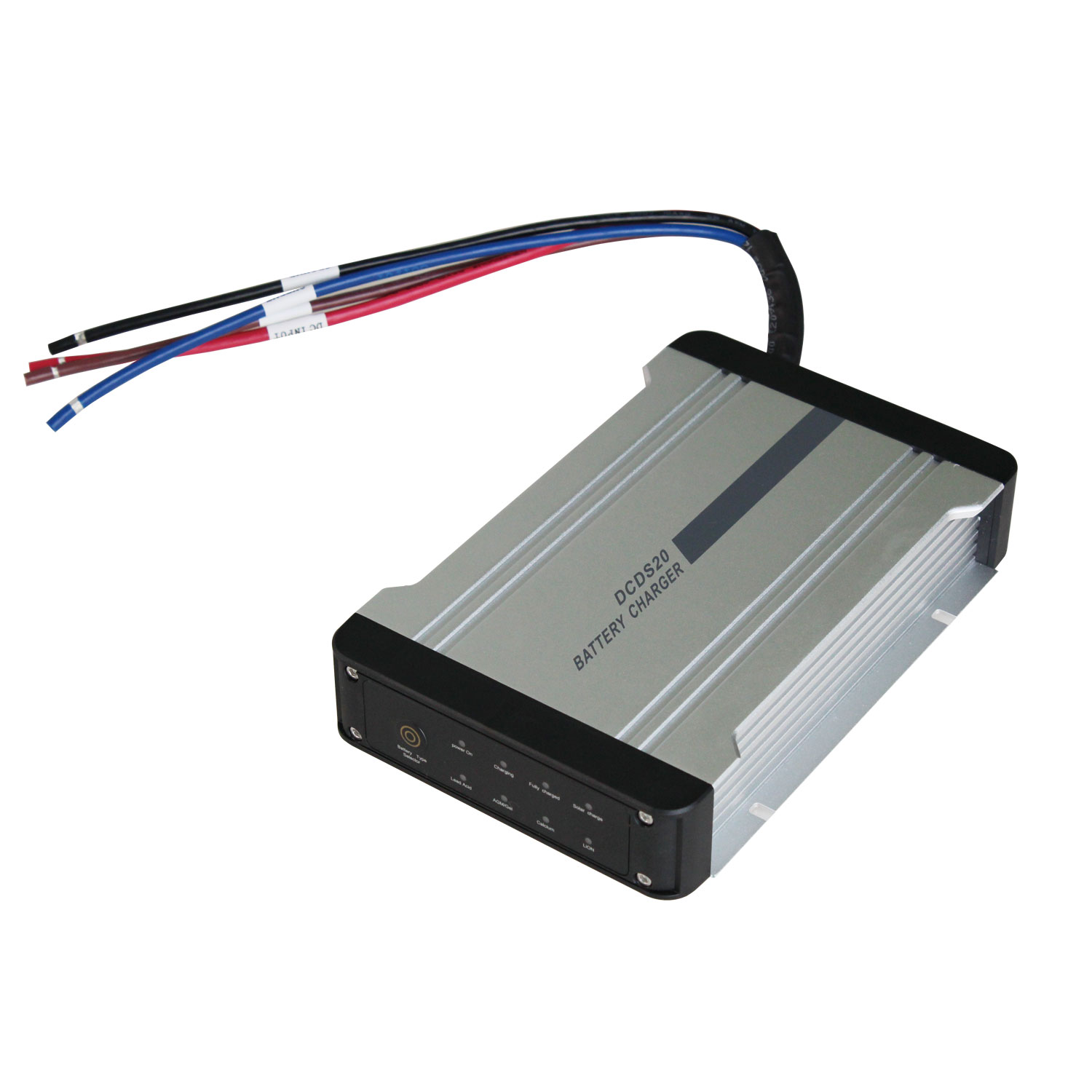

SMART MULTI-PURPOSE BATTERY CHARGER FOR SOLAR ,LEAD-ACOD/AGM/GEL/VRL/LION/CALCIUM
Product ID : EL-160
Product Attributes :
The charger designs and develops an unique series of smart vehicle battery chargers and
special solutions for different battery types (Lead-Acid/AGM/GEL/VRLA/LiON/Calcium) .There
are two input ways for your selection ,DC and Solar input , with SOLAR input and DC input
protection.
DCDS20M is a 12V/20A DC-DC charger, it can select different batteries through the buttons
on the panel. After selecting the charging mode during use, as long as you do not press the
Battery Type Selector button, the charger will automatically enter the last selected charging
mode each time it is started. To avoid shorten lifespan and encourage life extension of the
battery to save the environments, this charger products are programmed to tackle these is
sues and rejuvenate the fatigued battery to regain back to its peak performance.
Product Description

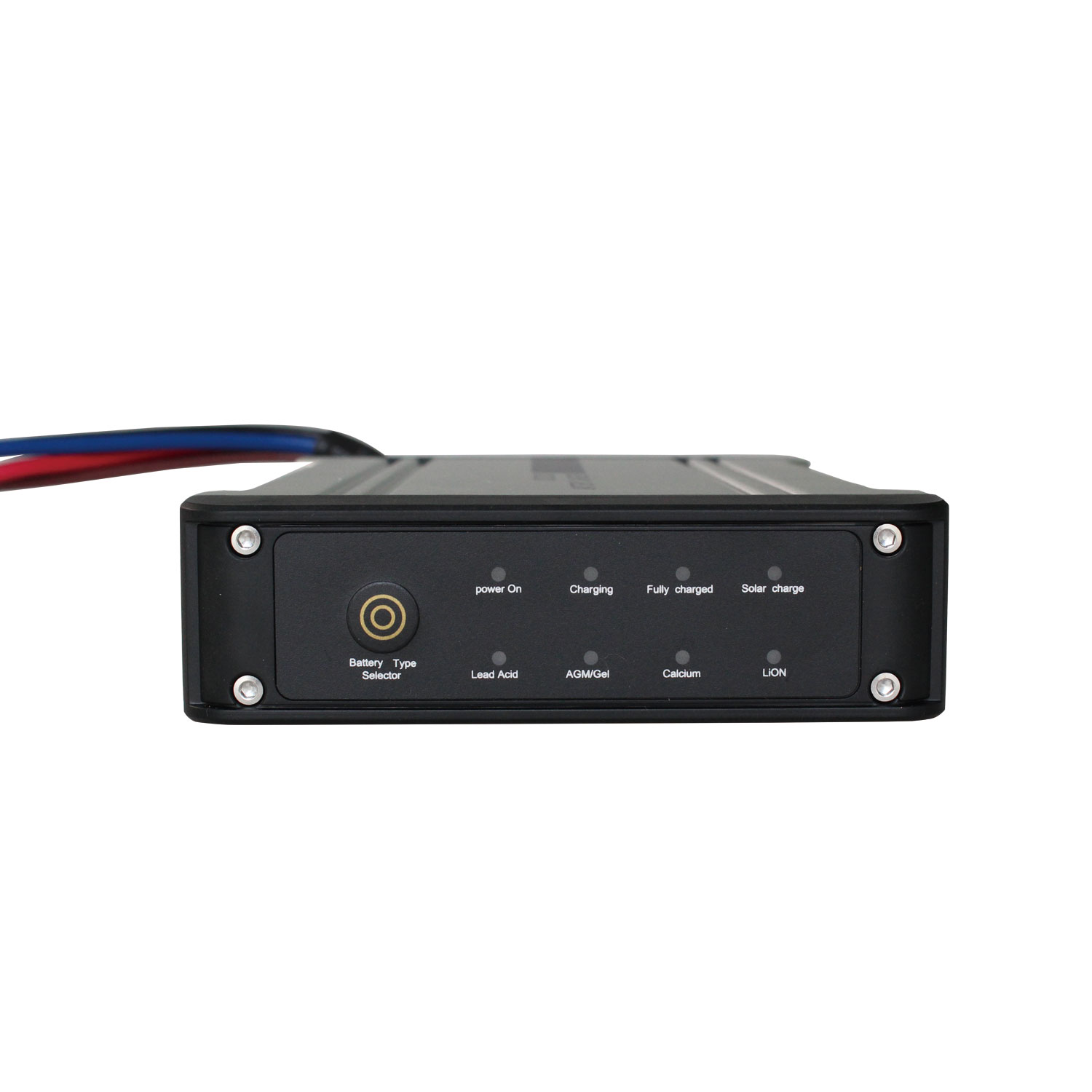

Battery mode selection
：Lead Acid,
AGM/Gel, Calcium, and LiON.
Automatic power-on voltage specifica
tion
Input reverse Polarity protection
Output reverse polarity protection
Last setting memory function
Output short circuit protection
Fully charge automatic stop
Over heat protection
Trailer/Caravan/RV charger
16~25V solar input
IP65 Waterproof
MPPT charge controller
Input Voltage DC： 12.4V-16V
SOLAR：16V-25V
Output Voltage
14.1VDC-14.7VDC（Lead Acid）
14.4VDC-15.0VDC（AGM/Gel）
15.0VDC-15.8VDC（Calcium)
14.1VDC-14.7VDC（LiON)
Output Current 20A
Battery type
LEAD-ACID/ AGM / GEL / VRLA/
LiON /Calcium
Operation
Temperature
-10℃ to 45℃
Warranty
One year
