PRODUCT
Net weight of the product: 311g
Product gross weight: 403g
[Packaging Method]: Kraft paper box packaging
【 Packaging size 】: 20.5x13.3x6cm
[Product Material]: Silicone Rubber
[Handle length]: 120mm * 2
[Input voltage]: DC12V
Output power: 13W-45W
[Working ring mirror temperature]: -20 ° C -+50 ° C
Product line length: 240cm
【 Applicable pipe diameter 】: 22mm diameter
【 Switch Type 】: 5+1 gear with LED indicator light

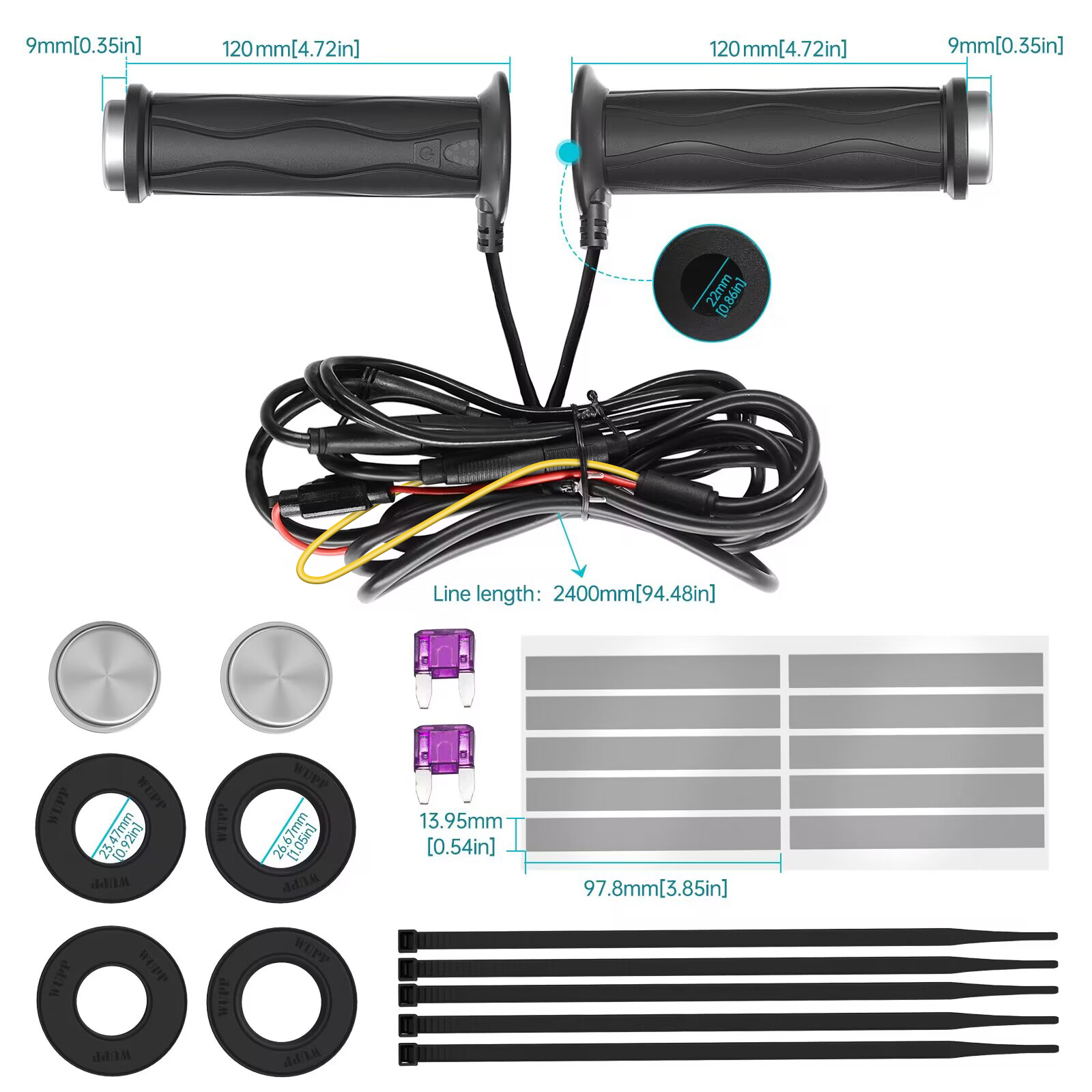

【 Product Accessories 】: 5 zip ties, 2 metal handle plugs, 1 aluminum foil sticker, 2 3A safety clips; Handlebar gasket * 4

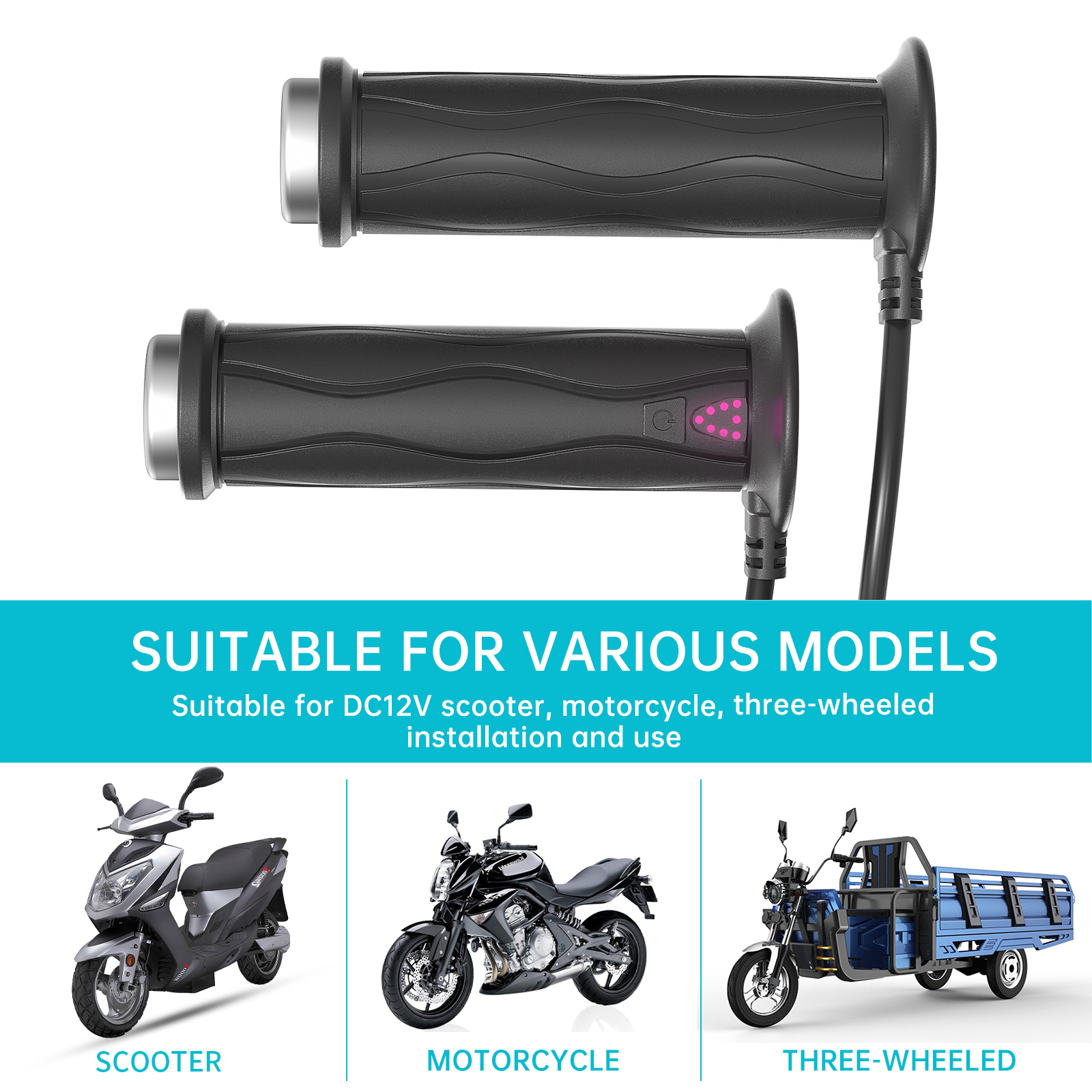

【 Scope of Application 】: Suitable for installation and use on DC12V scooters, motorcycles, and tricycles
【 Instructions 】:
【1】 The red wire is the positive pole (connected to the ACC line on the car), and the black wire is the negative pole. Please do not connect it incorrectly, otherwise it may cause product damage
【2】 Click on the power button to switch gears and shut down
【3】 When powered on, it starts up and works in memory gear (i.e. the gear before shutdown). The original default neutral gear is used, and the gear is not changed when turned on.
【4】 Memory the current gear when working in any gear, and can also remember when power is lost. Press for 3 seconds to shut down.

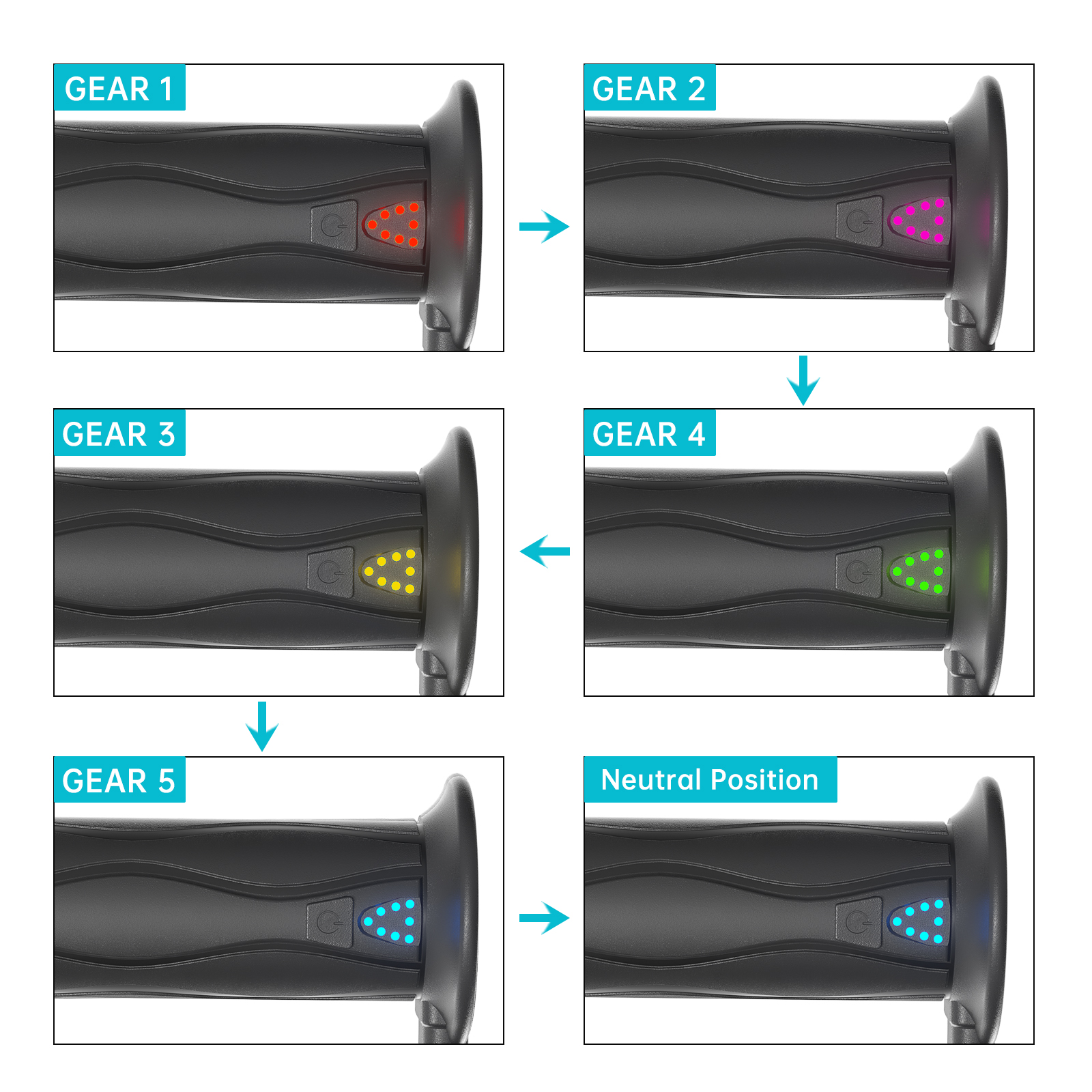

【5】 LED indicates different gear colors: gear red: 100%; Second grade pink: 75%; Three levels of green: 50%; Four levels of yellow: 40%; Five levels of blue: 30%; Neutral: Blue
【6】 Neutral definition: Press neutral and the blue light will turn off, then turn on and off again. (Flashing five times) At this time, the memory gear is neutral
【7】 Equipped with surge protection and reverse connection protection
