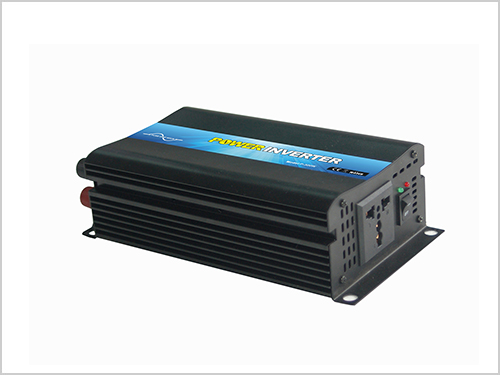

PRODUCT
|
Model |
P300-12-110 |
P300-24-110 |
P300-48-110 |
P300-12-220 |
P300-24-220 |
P300-48-220 |
|
|
Output Power |
300W |
300W |
300W |
300W |
300W |
300W |
|
|
Peak Power |
600W（5MS） |
||||||
|
Input Voltage |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
Output Voltage |
110VAC±10% |
220VAC±5% |
|||||
|
No-load current |
＜0.34A(DC13V) |
＜0.3A(DC26V) |
＜0.2A(DC52V) |
＜0.34A(DC13V) |
＜0.32A(DC26V) |
＜0.2A(DC52V) |
|
|
Output frequency |
50HZ±1%/60HZ±1% |
||||||
|
Output Waveform |
Pure sine wave |
||||||
|
wave form distortion |
THD＜3% |
||||||
|
full load efficiency |
＞86%(DC13V) |
＞88%(DC26V) |
＞90%(DC52V) |
＞86%(DC13V) |
＞88%(DC26V) |
＞90%(DC52V) |
|
|
Input voltage range（No-load） |
10.6V～15.3V |
21.5V～31.5V |
40.7V～61.8V |
10.6V～15.3V |
21.5V～31.5V |
40.7V～61.8V |
|
|
Undervoltage Alarm（No-load） |
10.5±0.3V |
21.2±0.2V |
40.5±0.3V |
10.5±0.3V |
21.2±0.2V |
40.5±0.3V |
|
|
Undervoltage portection（No-load） |
9.5±0.2V |
19.4±0.2V |
37.5±0.5V |
9.5±0.2V |
19.4±0.2V |
37.5±0.5V |
|
|
Overvoltage protection（No-load） |
15.5±0.2V |
31.8±0.3V |
62.4±0.6V |
15.5±0.2V |
31.8±0.3V |
62.4±0.6V |
|
|
Undervoltage recover（No-load） |
12±0.2V |
24.4±0.2V |
47.7±0.4V |
12±0.2V |
24.4±0.2V |
47.7±0.4V |
|
|
Overvoltage recover（No-load） |
15.4±0.2V |
31.7±0.3V |
62.3±0.6V |
15.4±0.2V |
31.7±0.3V |
62.3±0.6V |
|
|
Over-load protection |
125%～130% |
||||||
|
Protection functions |
undervoltage：LED red lighting，buzzer warning，Auto recover
|
||||||
|
Over voltage：LEDred lighting，Auto recover |
|||||||
|
Over load：LEDred lighting，auto close，need restart |
|||||||
|
over-temperature：LED red lighting，auto recover |
|||||||
|
short out（2s）：auto recover |
|||||||
|
input polarity reverse：blown fuse |
|||||||
|
Working temperature |
–10℃- +50℃（model selection–40℃- +65℃） |
||||||
|
Stock temperature |
–30℃- +70℃（model selection–40℃- +70℃） |
||||||
|
humidity |
20%～90%RH RH |
||||||
|
Work altitude |
≦1200m |
||||||
|
dimension |
220*118*63mm |
||||||
|
weight |
1.2±0.02kg |
||||||
|
Package dimensions |
330*160*115mm/1 pcs； 360*260*305mm/6pcs |
||||||
|
Package Weight |
1.68±0.05kg/1pcs； 8.85±0.05kg/6pcs |
||||||
