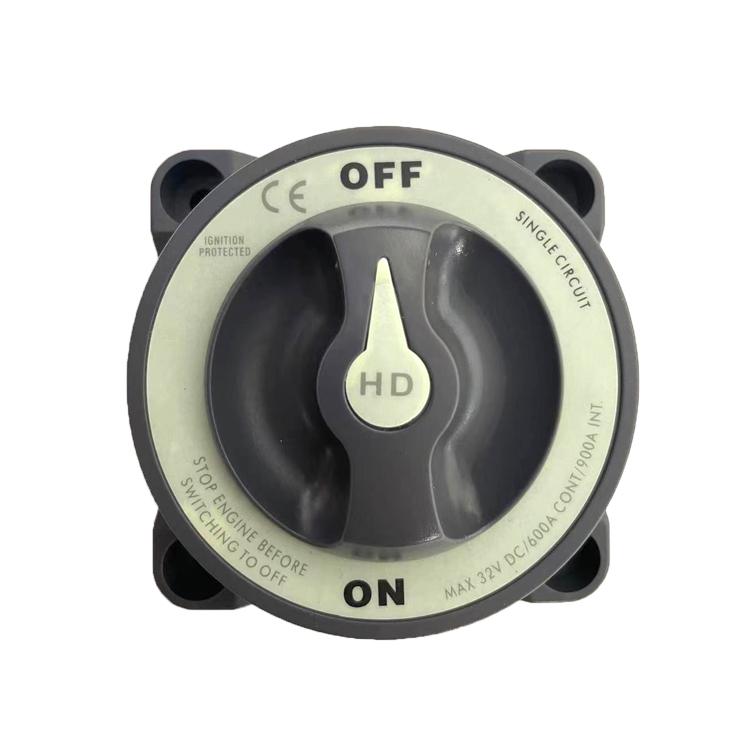

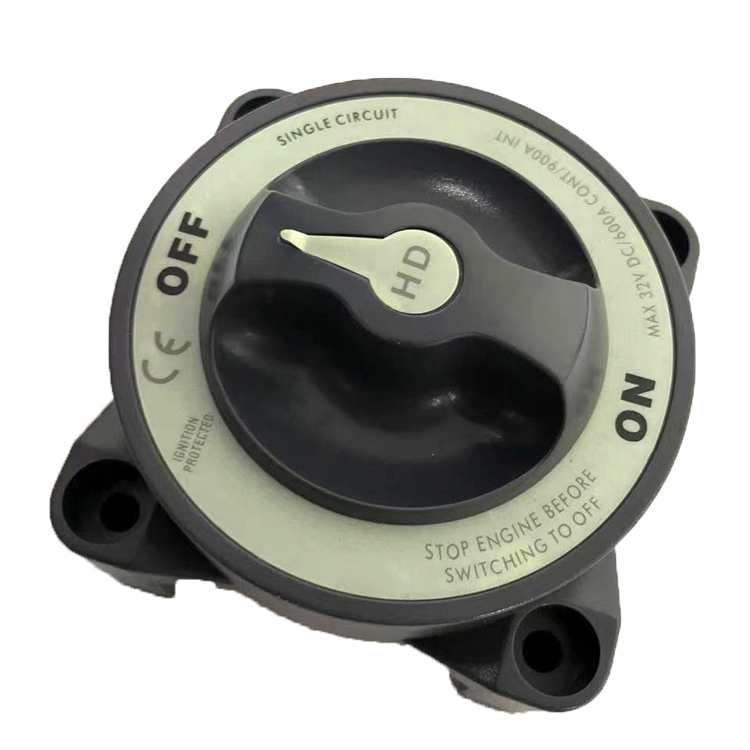

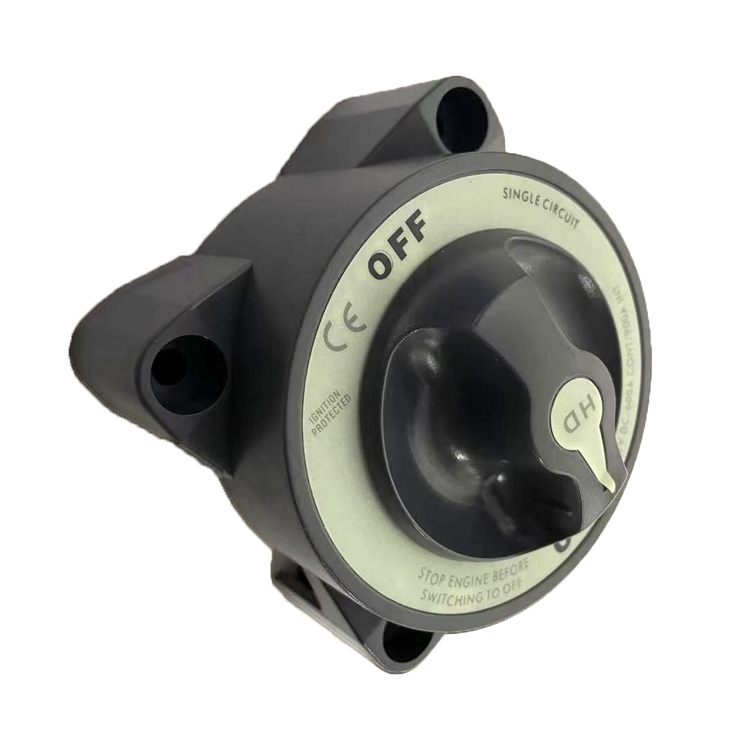

Blue Sea 3000 HD-Series Heavy Duty On-Off Battery Switch. Marine, Winch
Product ID : EL-3000
Product Tags :
Blue Sea Type battery switch
Product Attributes :
| Switch Type | Single Circuit On/Off |
|---|---|
| Switch Family | HD-Series |
| Switch Colour | Grey |
| Function | Switches a single battery to a single load group |
| Battery Inputs | 1 |
| Switch Positions | 2 |
| Battery Combine | N/A |
| Make Before Break | N/A |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32VDC |
| Continuous Rating | 600A |
| Intermittent Rating | 900A |
| Cranking Rating (30 Sec) | 1750A |
| Stud Material | Tinned Copper |
| Stud Size | 1/2" (M12) |
| Stud Torque | 220 in-lb (24.86Nm) |
| Cable Size to Meet Ratings* | 4/0 AWG (120 mm²) |
| IP Rating | IP66 |
| Weight | 1.30lb (0.59 kg) |
Product Description
Battery switches isolate the potentially destructive energy in the battery banks when the vehicle is not in use or during emergencies.
Switches a single battery to a single load group
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (120mm²) battery cables
600 Amps continuous rating for outboards and small gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 1/2" (M12) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface, rear, or front panel mounting options
- Tactile indicator conveys knob position by feel
- Waterproof – rated IP66 from water projected in powerful jets
- Meets American Yacht and Boat Council E-11 requirements.
- CE approved
