Blue Sea 6008 Marine m-Series Selector 3 Position Battery Switch - Red
Product ID : EL-6008
Product Tags :
Blue Sea Type battery switch
Product Attributes :
Specifications
- Switch Type: Selector 3 Position
- Color: Red
- Switch Positions: 3
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 32V DC
- Stud Size: 3/8″
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 Min)
- Cranking Rating 30 sec: 900A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
4/0 AWG (130mm²) - Mounting Holes: Accept #10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8″ – 16 (M10)
- Weight: 0.77lb (0.35 kg)
Product Description
Overview
Switches a single battery to a single load group.
Features
- Ignition protected-safe for installation aboard gasoline powered boats

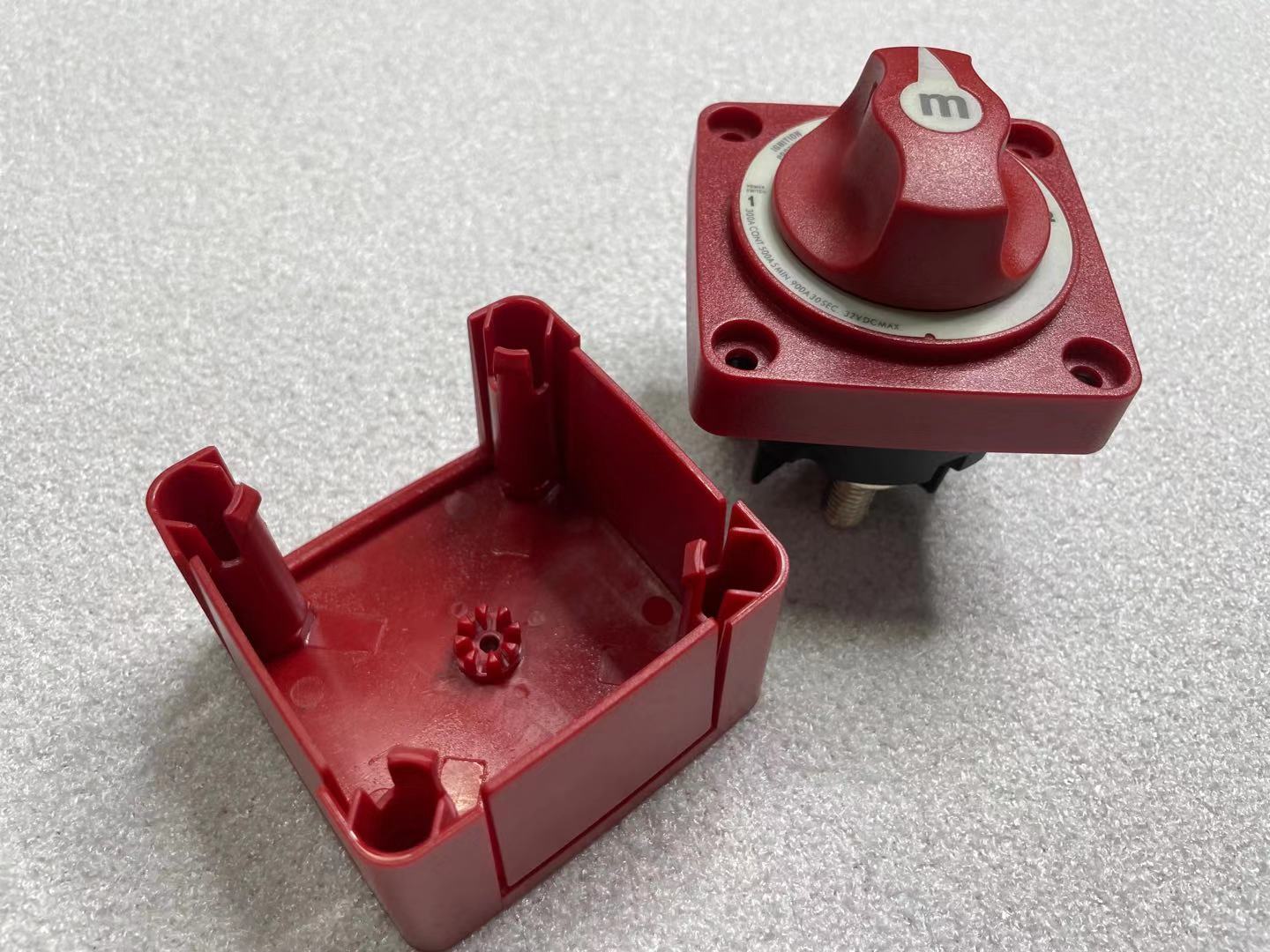

- Case design allows surface or rear panel mounting
