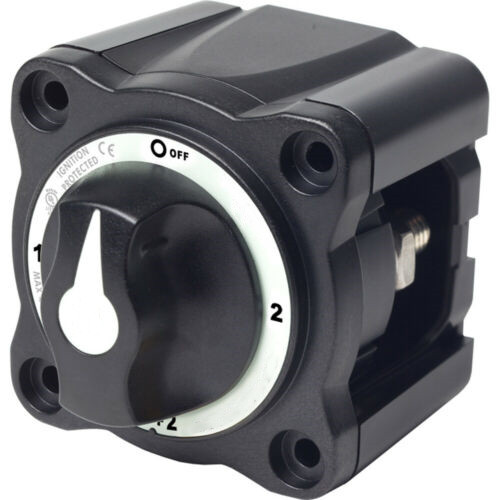

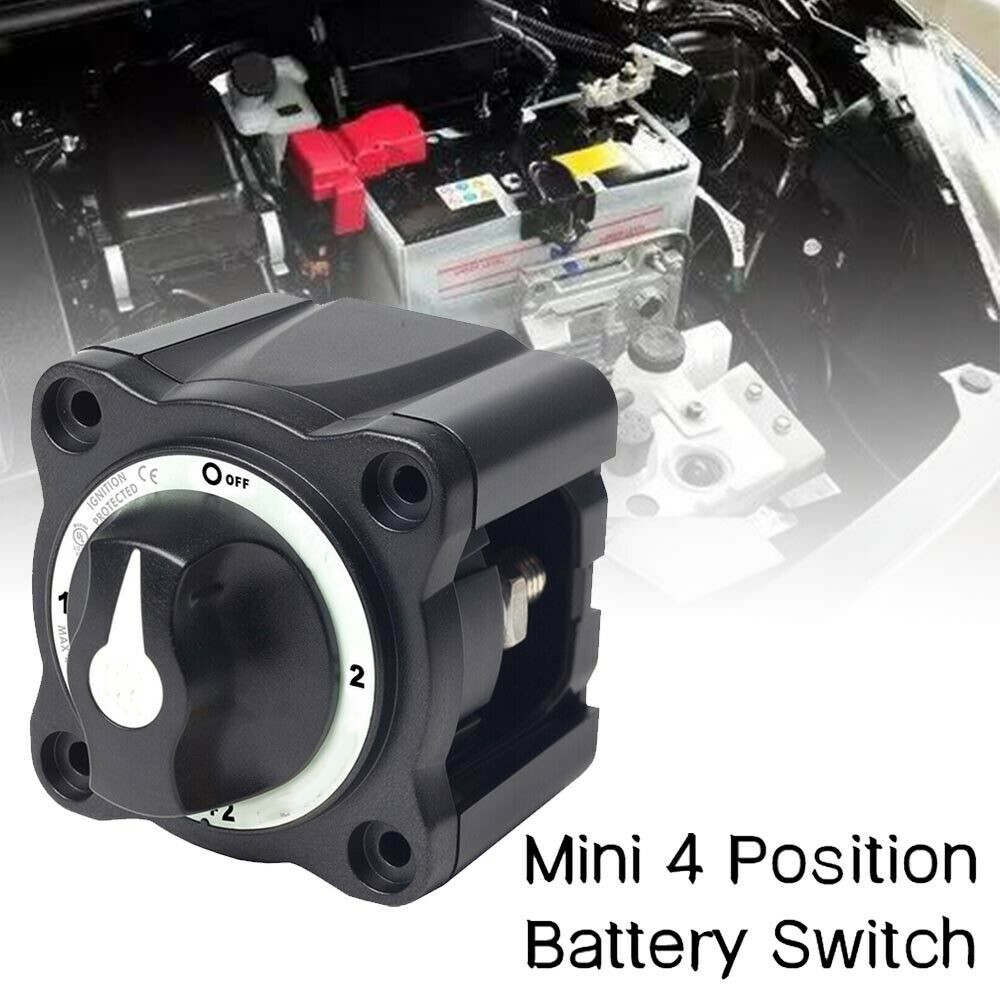

Black Mini 4 Position Battery Switch For Car Truck gasoline Powered Boats 6007
Black Mini 4 Position Battery Switch For Car Truck gasoline Powered Boats 6007 Black Mini 4 Position Battery Switch For Car Truck gasoline Powered Boats 6007 Black Mini 4 Position Battery Switch For Car Truck gasoline Powered Boats 6007 Black Mini 4 Position Battery Switch For Car Truck gasoline Powered Boats 6007

Black Mini 4 Position Battery Switch For Car Truck gasoline Powered Boats 6007

Product ID : EL-10
Product Tags : marine battery switch
Product Attributes :

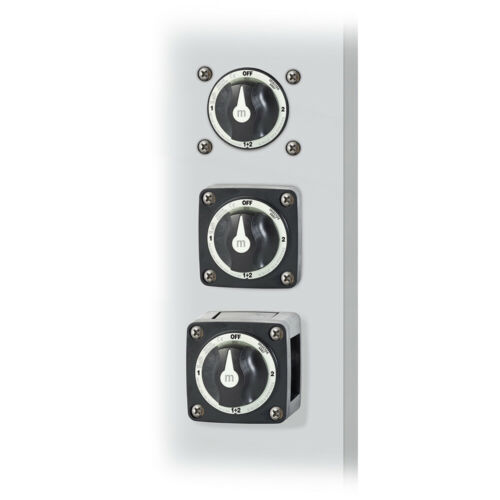

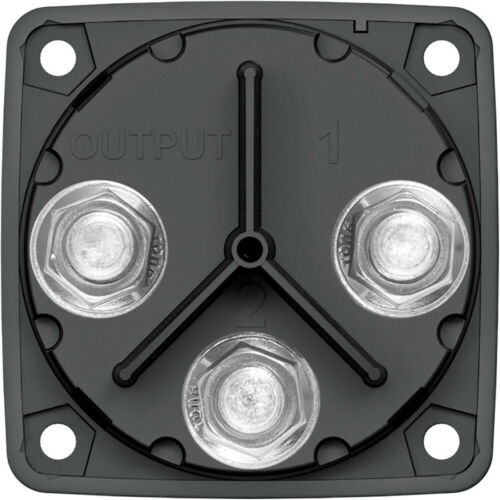

Ignition protected - Safe for installation aboard gasoline powered boats. Case design allows surface, front panel, or rear panel mounting. Isolating cover with snap-on sections protects rear contacts 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals



Make before break contact design allows switching between battery banks without power interruption
Selector Switches battery bank 1 or battery bank 2 or both to a single load using one switch.

Product Description

Cranking Rating: 30 sec. 1750A

Intermittent Rating: 5 min.900A

Continuous Rating 600A



Voltage Max. Operating 32VDC

Weight: 500g
Package Included:
1 x Engine Start Switch
