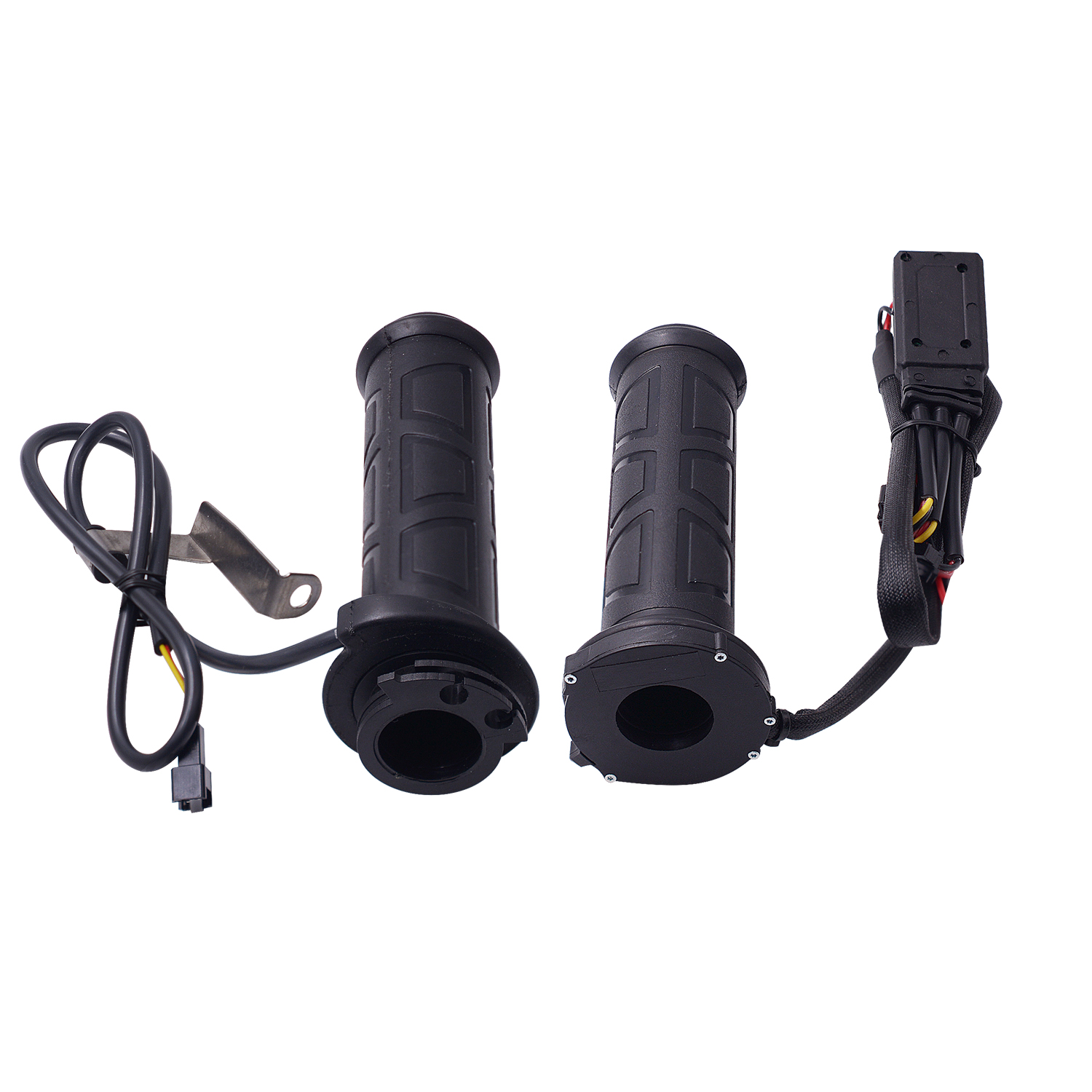

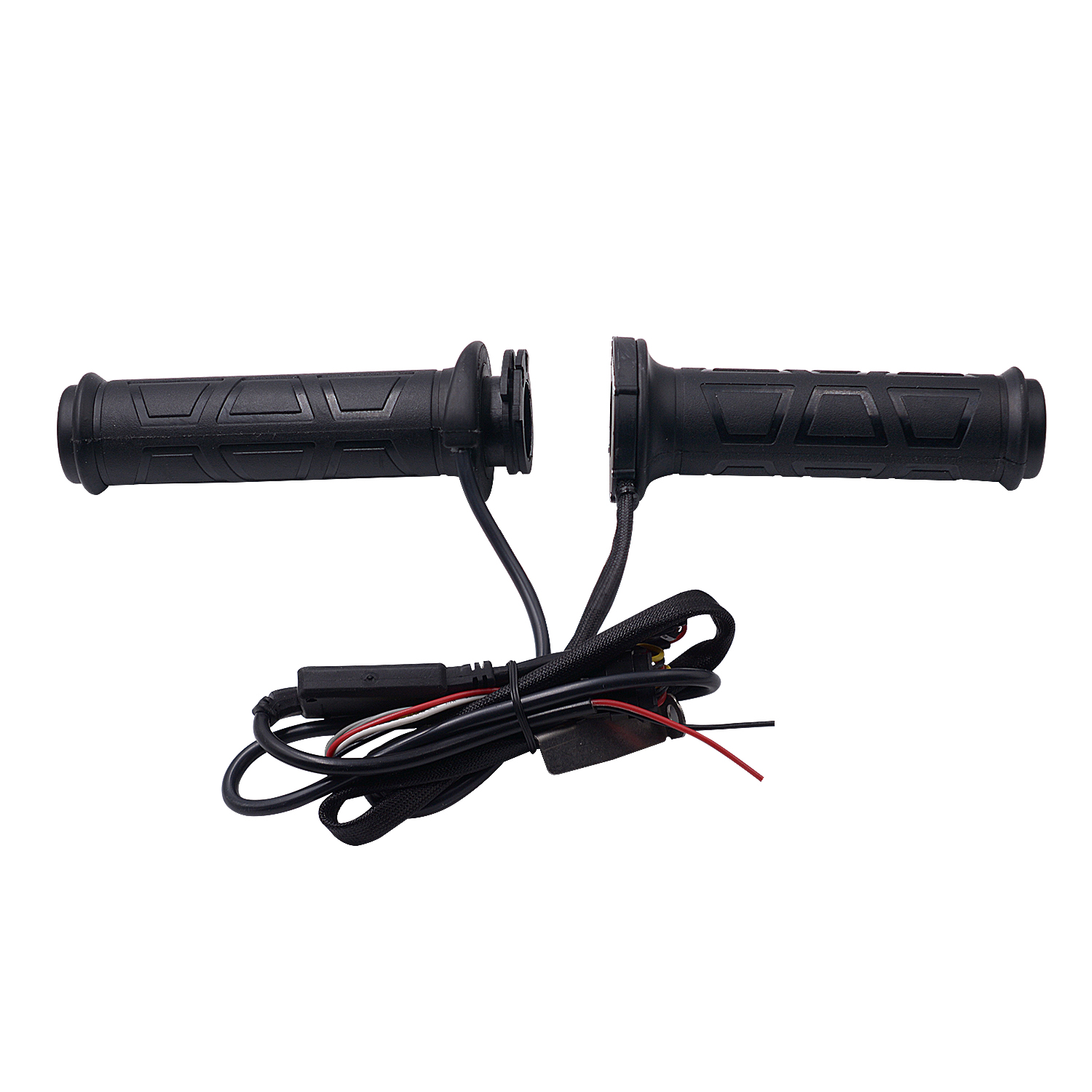

EL-095B1 15-35W Waterproof Open Mouth Handle with Electric Heating Feature Sealed for Motorcycle Body Systems

Net weight of the product: 249g

Product gross weight: 275g

【 Packaging Method 】: Color Box Packaging

【 Packaging size 】: 14.5x10.5x5.5cm

【 Product Material 】: Nitrile rubber

【 Input voltage 】 DC12V

【 Product Power 】: 15-35w adjustable

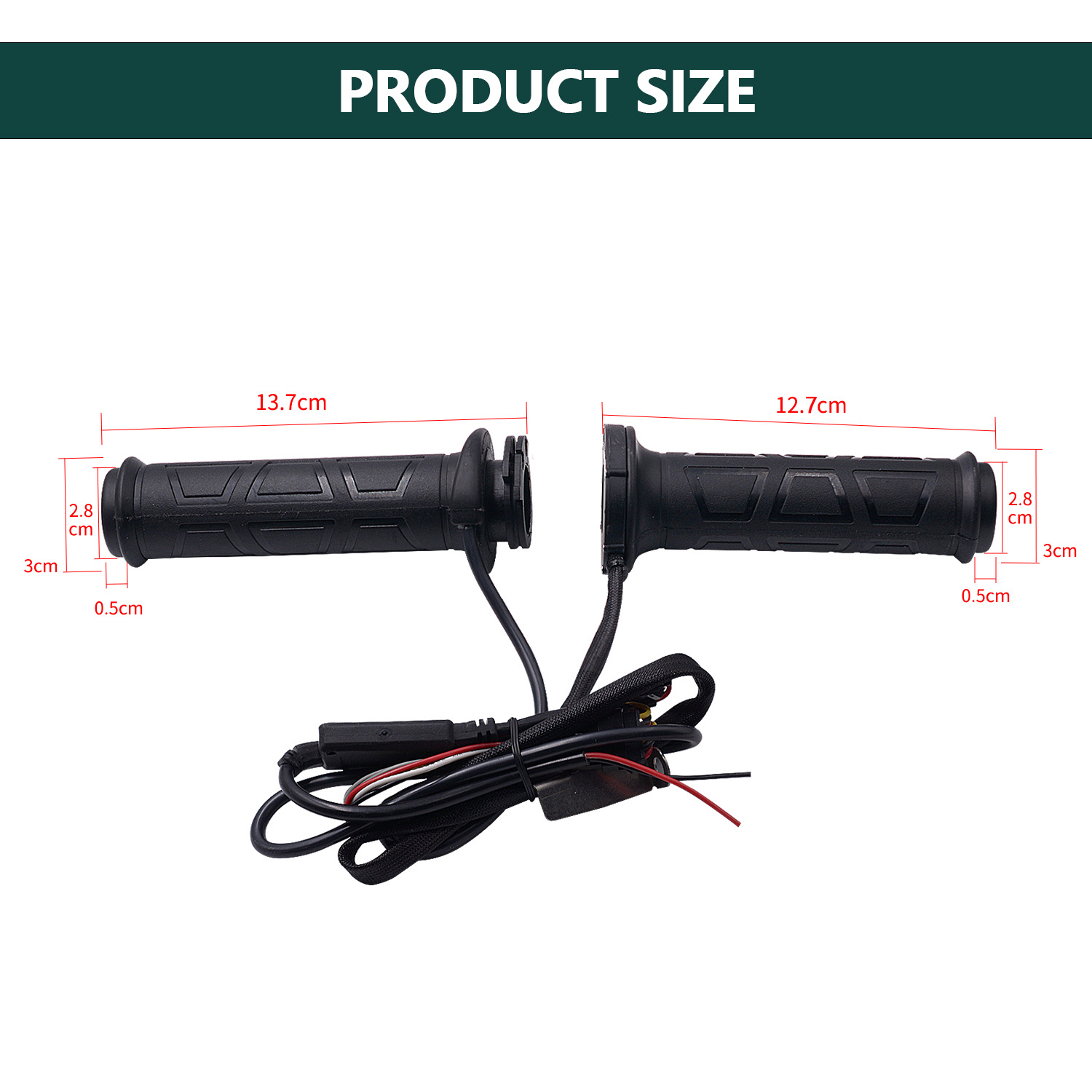

【 Handle length 】: Left hand: 127mm; Right hand: 137mm

【 Product Inner Diameter 】: 22MM

【 Handle Type 】: Open mouth electric handle

【 Switch Type 】: Four level adjustable switch

【 Applicable models 】: 12V motorcycle with a handle diameter of 22MM

【 Installation Instructions 】:

【1】 Remove the original driver

【2】 Wet the inner hole with soapy water with your left hand, and do not twist it too much during installation

【3】 When installing the balance iron on the left handle, adjust the position of the balance iron to be slightly separated from the handle, and do not squeeze the handle when tightening the screws

【4】 Use your left hand to slide on the steel pipe and remove the balance iron

【5】 Power cord, red wire connected to positive pole, black wire connected to negative pole, reverse connection, temperature cannot be adjusted

【6】 When installing the left handlebar, there should be sufficient rotational margin left for the power cord

Product advantages and selling points:

【1】 12V voltage, 22MM handle inner diameter, suitable for most motorcycles

【2】 The product is equipped with high and low switches, which can adjust the temperature of the handle freely (50 ℃ -70 ℃ adjustable)

【3】 Dual throttle cable clip, wider installation range

【4】 Sealed and passable design, does not affect the installation of handle plugs on the outside of the handle, and only adds decorative accessories such as lights, making it more beautiful and convenient
