EL-1704B1 New 10 Circuit Fuse Box Type 2 Row Blade with Dual Battery Compatibility Plastic Construction

【 Installation Scope 】: Can be installed on small cars, off-road vehicles, RVs, buses, yachts, boats, etc., with a wide installation range

[Function of indicator light]: When the red LED light is on, it indicates that the fuse has been disconnected and needs to be replaced in time to continue running

[Scope of use]: It can be directly connected to any electrical circuit on the car/ship, such as roof lights, headlights, side lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc

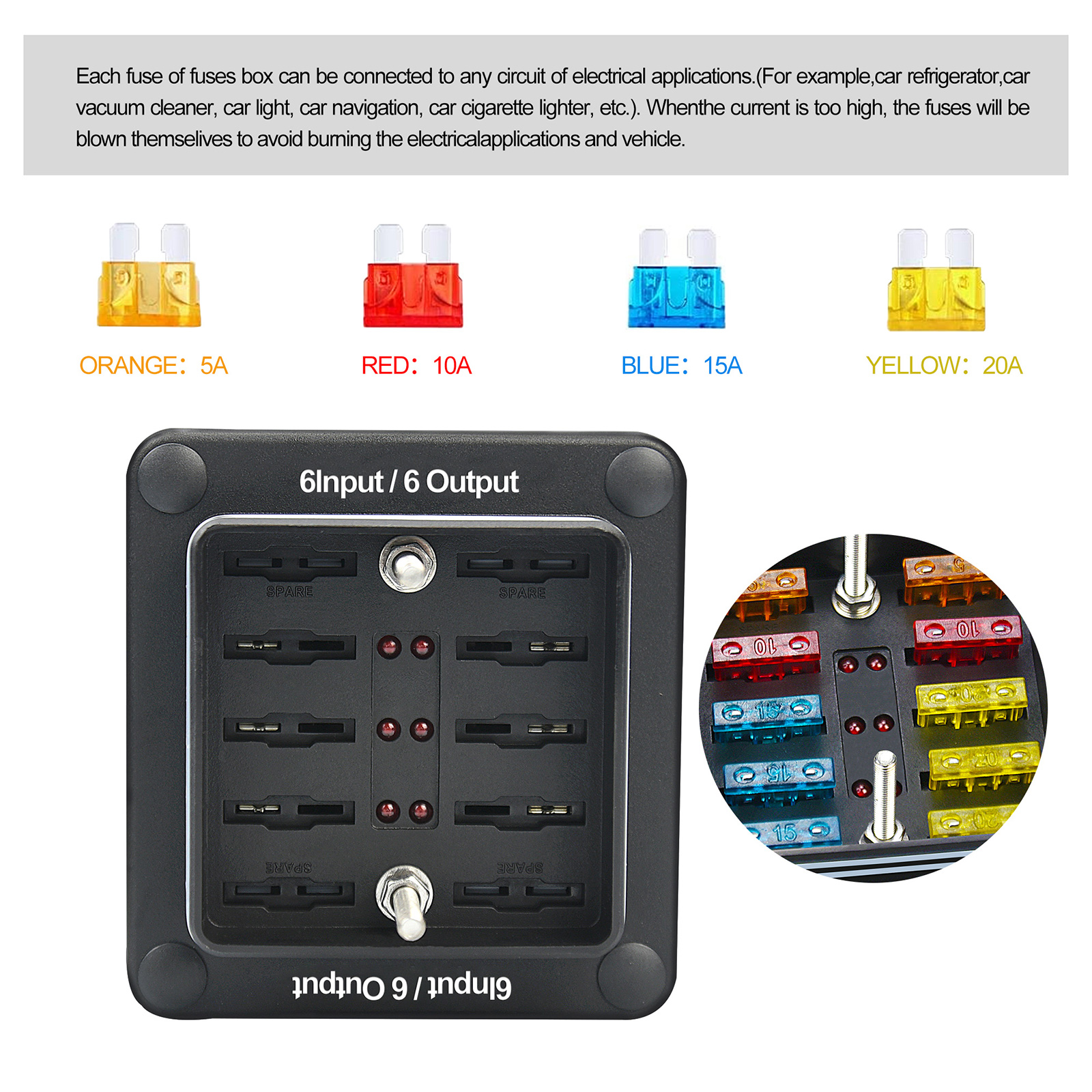

【 Product Accessories 】: Sticker X2; Self tapping screw X4; Rubber gasket x1; X4 20A safety plates; Four 15A insurance pads; 2 pieces of 10A insurance pads; 2 5A insurance pads; X2 main line connection terminal wires; Flat terminal with x6 protective sleeves. Accept ATO or ATC fuses from 1A to 20A

[Function of Fuse]: When a circuit malfunctions or is abnormal, the current continues to rise, and the rising current may damage some important components or valuable equipment in the circuit, or burn out the circuit or even cause a fire.

Fuses are used to protect electronic devices from damage caused by excessive current, and can also prevent serious damage caused by internal faults in electronic devices. Therefore, each fuse has a rated specification, and when the current exceeds the rated specification, the fuse will melt.

If the fuse is correctly installed in the circuit, it will automatically melt and cut off the current when the current abnormally rises to a certain height and temperature, thus protecting the safe operation of the circuit and reducing damage to the equipment.

[Product Advantages]:

【1】 The product is made of PA66 anti flame retardant and high/low temperature resistant material, which fully meets the conditions that the fuse holder must have good mechanical strength, insulation, heat resistance, and flame retardancy, and will not produce phenomena such as breakage, deformation, combustion, and short circuit during use

【2】 All fastening accessories are made of stainless steel material. The overall installation of the fuse box is relatively simple, and self tapping screws are used to fix the fuse box, making installation more convenient and safe.

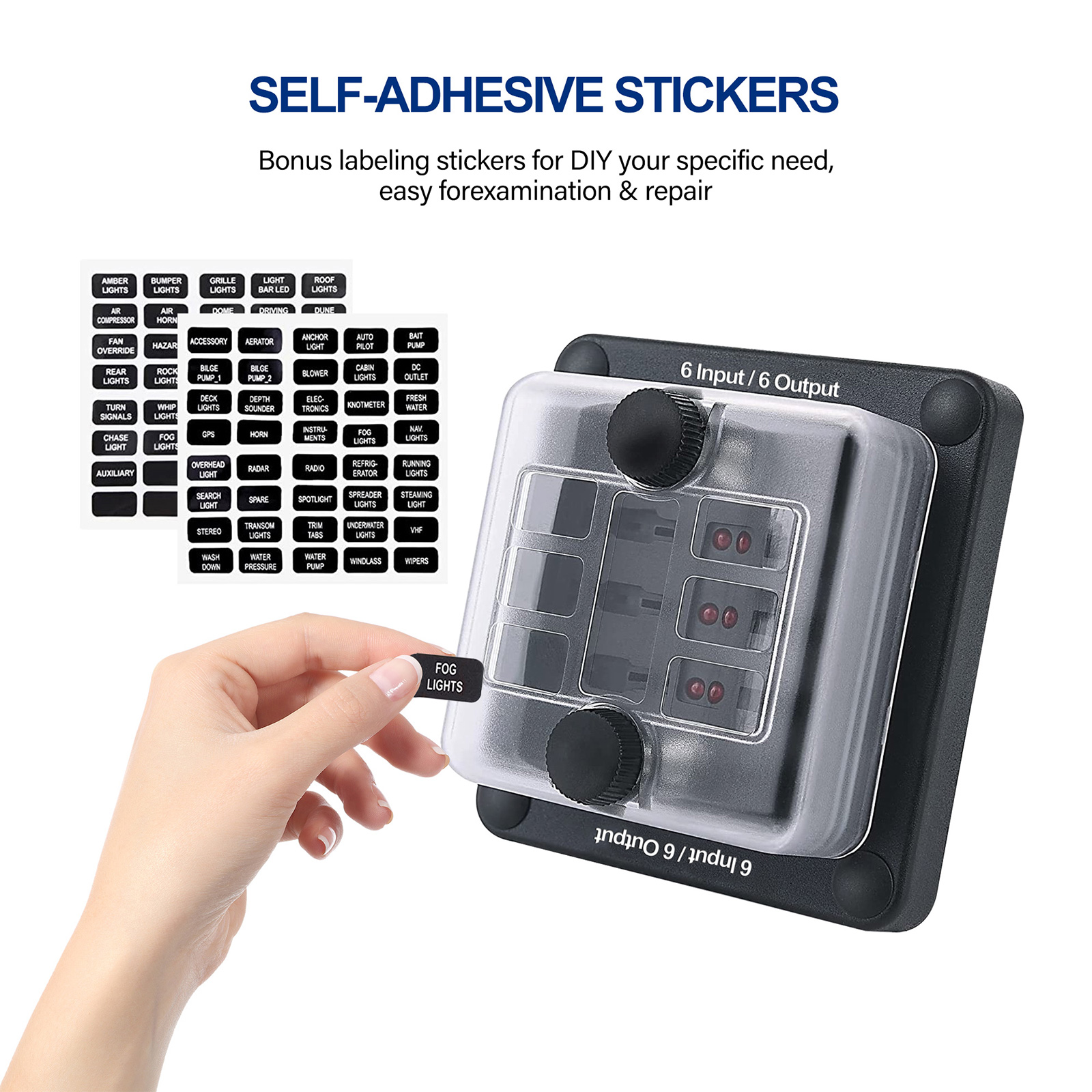

【3】 The product comes with delivery stickers that can be attached to the corresponding electrical appliances according to the names on the stickers, which can better distinguish the electrical appliances corresponding to each line. When the fuse breaks, we can immediately identify which electrical appliance is at fault, saving time, effort, and safety

【4】 The product comes with double fuses. When the current is too high or short circuited, the fuse will burn out and can be replaced immediately from the backup fuse. Additionally, multiple fuses are provided, and the corresponding fuse blade for each fuse can be selected based on the current electrical appliance

【5】 This is a waterproof fuse box designed for large water wading vehicles such as off-road vehicles, RVs, and ships. Currently, regardless of the quality of the fuse boxes on the market, they are mainly dust-proof and do not have waterproof measures.

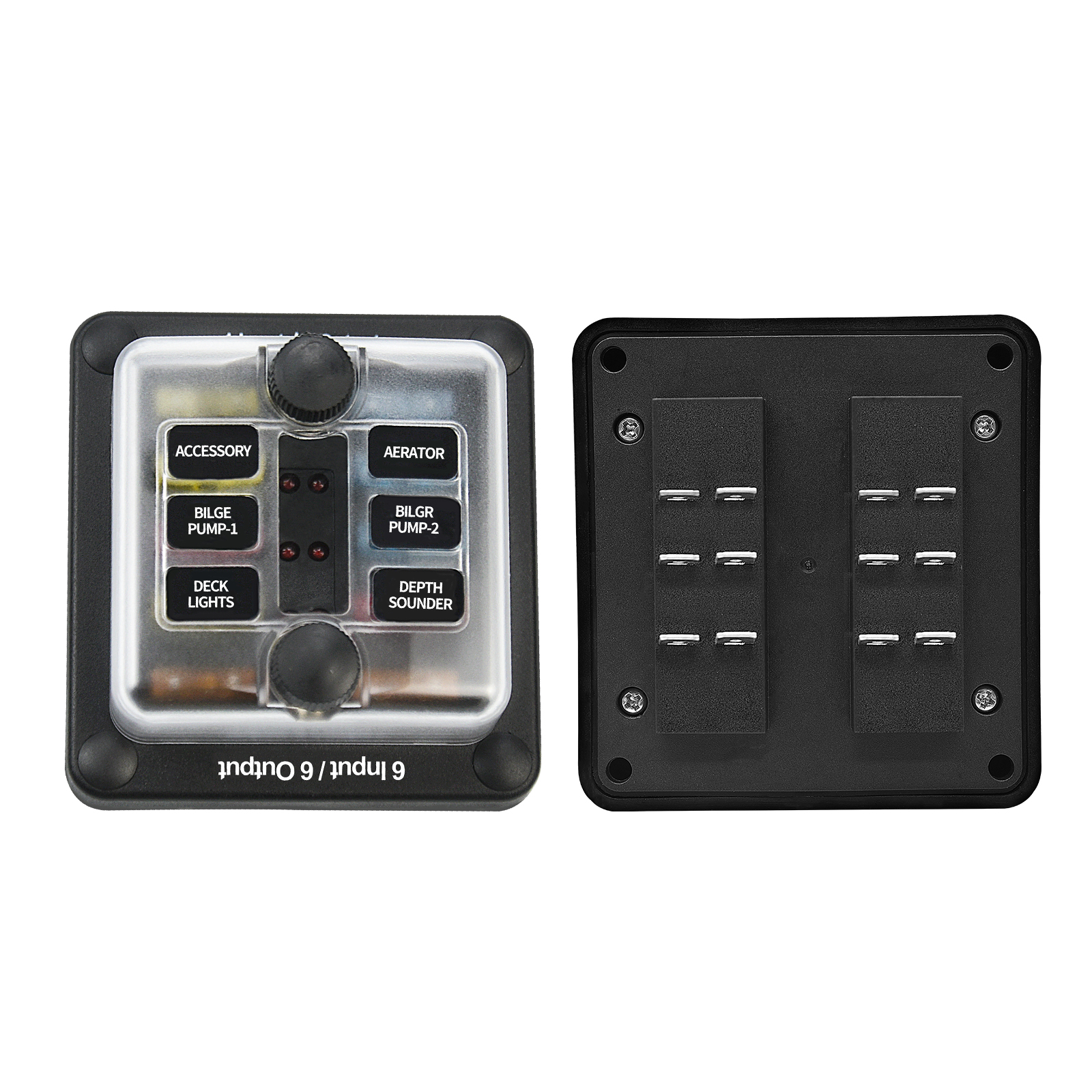

This fuse box is equipped with a front waterproof cover, Shunding waterproof gasket, surrounding sealing ring, perforated installation and wiring, and can achieve a waterproof rating of IP66, which can effectively achieve waterproof protection

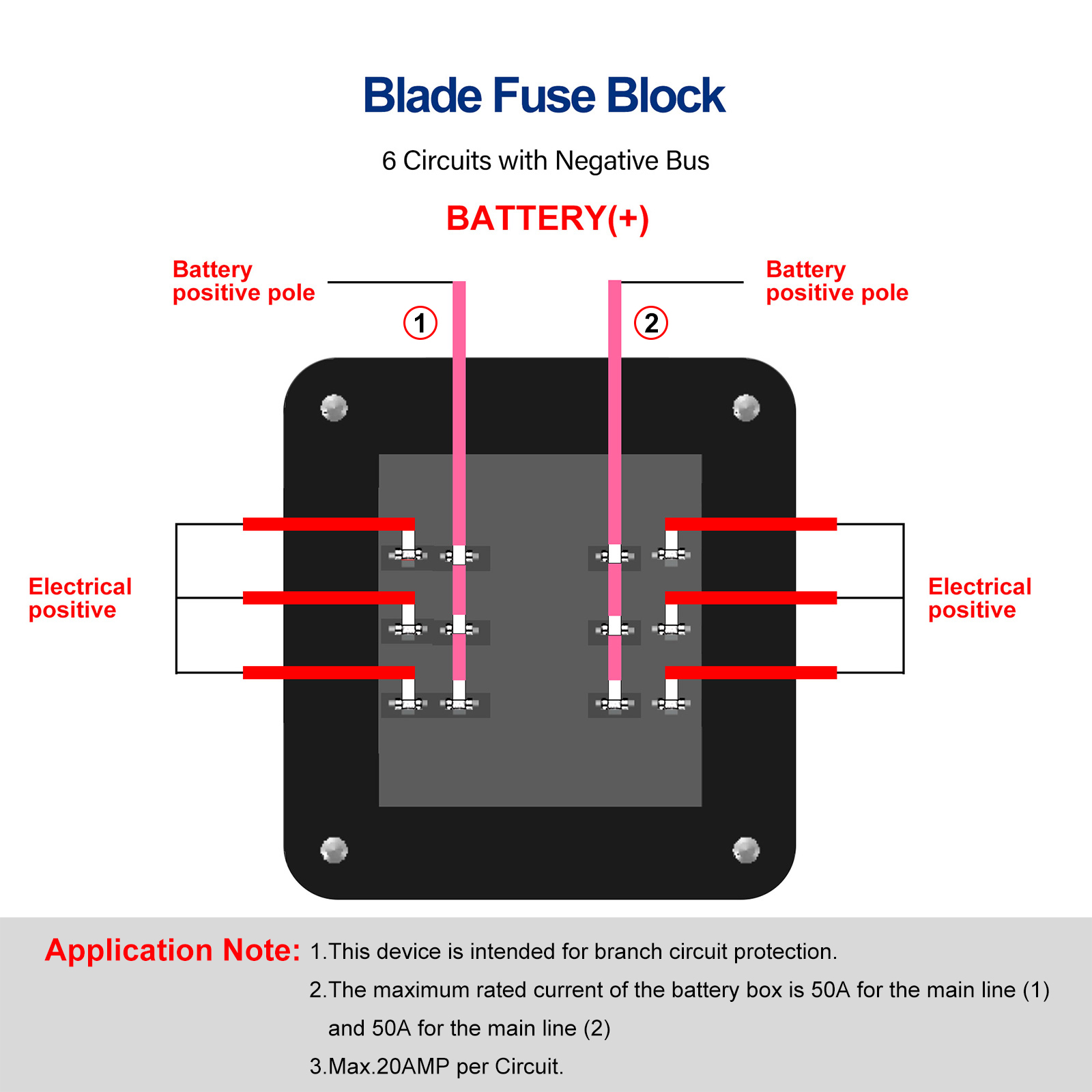

【6】 This fuse box design adopts a dual main line circuit design, and wearing connecting terminal wires makes wiring simpler.
