EL-120 SMART BATTERY MONITOR For different types of batteries
Product ID : EL-120
Product Attributes :
10 - 120 VDC
10 – 1000.0 Ah
500 A
≤ 1 W
±1 %
±1 %
±1 %
-20°C - +50°C
Bluetooth, RS485
125*82*21 mm
110 g
IP20
EN 62368-1:2014+A11:2017
EN 50663:2017
ETSI EN 301 489-1 V2.2.3(2019-11)
Product Description

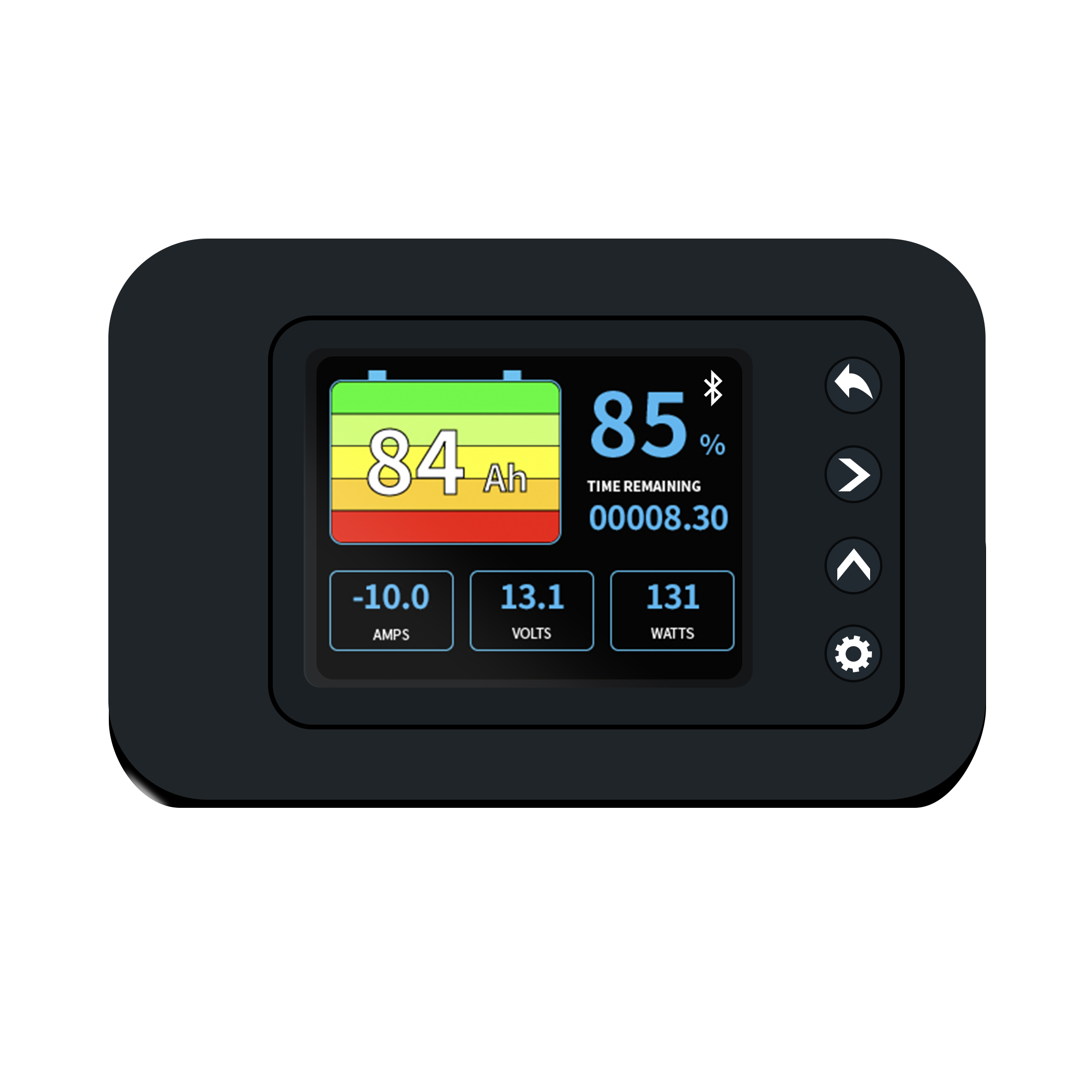

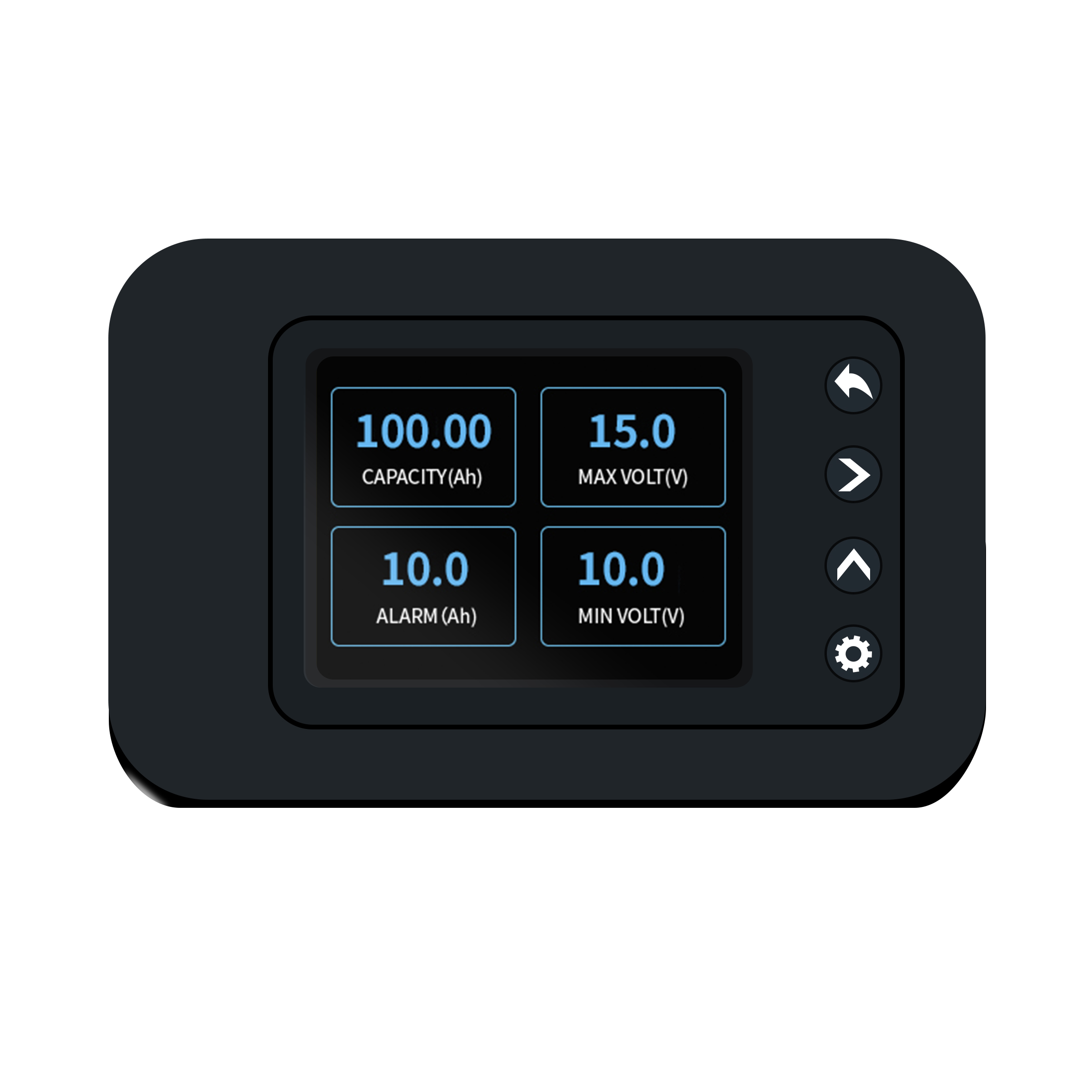

Clear display interface and operation interface, combined with four physical buttons, easily set
capacity, maximum voltage, minimum voltage, capacity alert to meet difffferent needs.
Meanwhile, download the Android or IOS APP to do fast and easy settings.
Easy to install

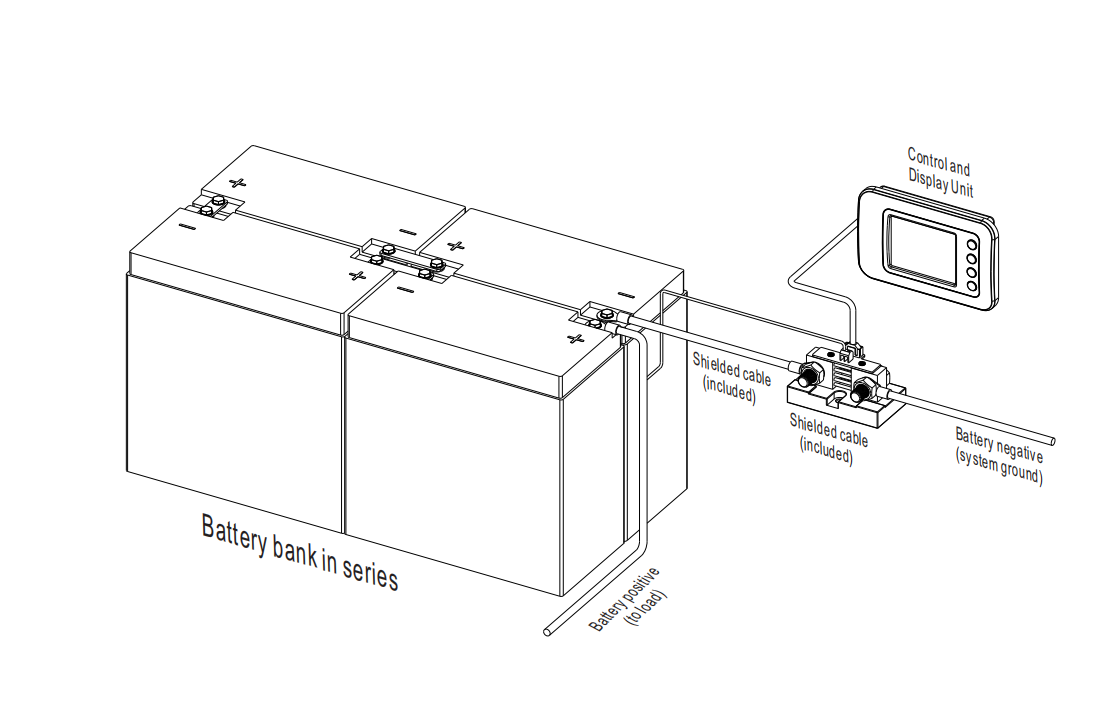

Clear installed diagram, clear at a glance. The installation card with the monitor makes the
installation hole position simple and clear.
Wireless, smart and simple

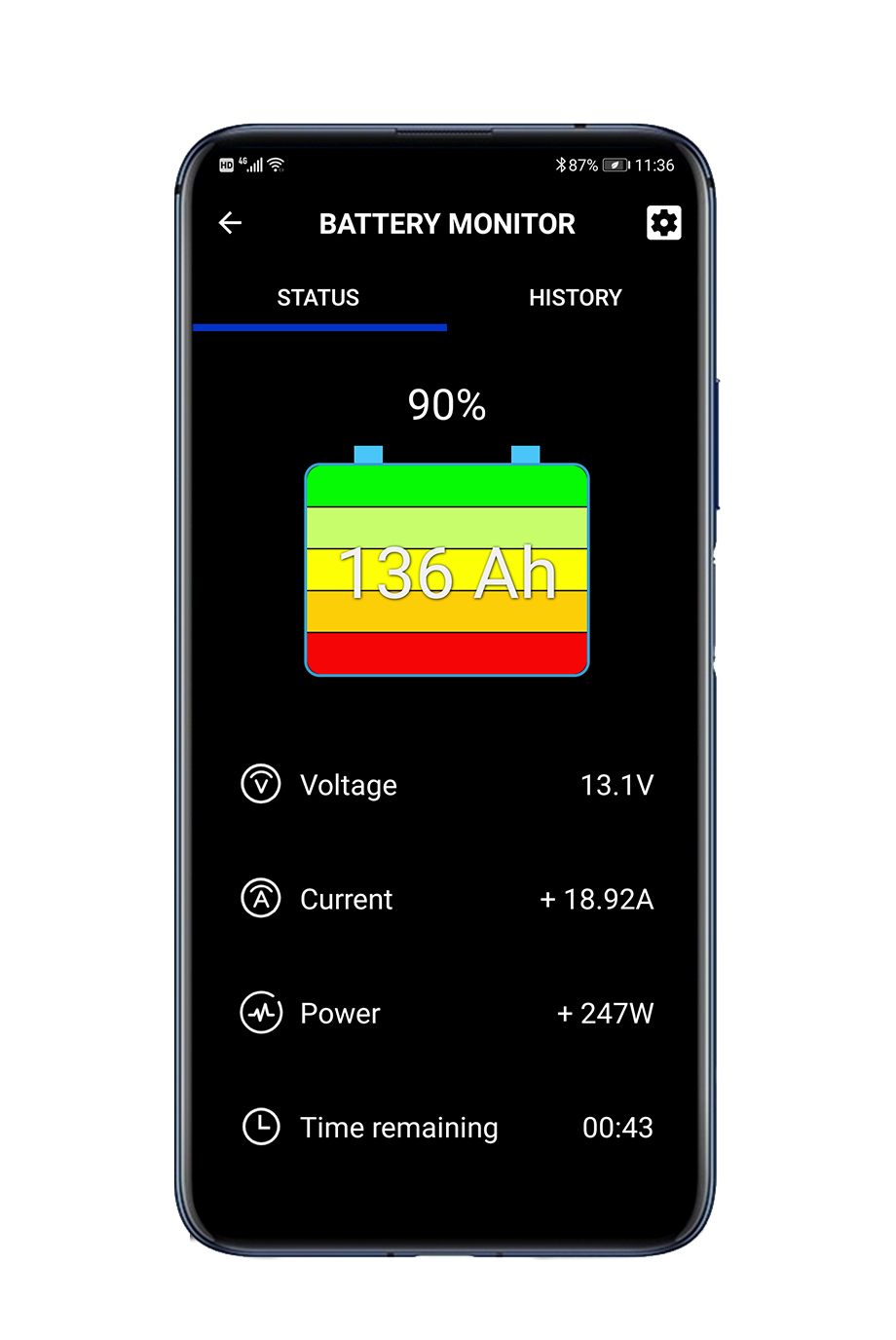

With the Bluetooth connection, to monitor the battery information on Android or IOS APP.
·Suitable a wide variety of battery systems
·Battery capacity, capacity percentage, voltage, current, power, time remaining
·Two screen interface, four buttons, easy to operate
·Simple installation
·Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
·500Amps quick connect shunt with PCB
·Wide voltage range: 10V – 120V, wide capacity range: 10– 1000.0Ah
·Color LCD display, clear at a glance
·Advanced APP, download from Apple store or Google store
·One-button clear battery capacity calibration; one-button make battery capacity full calibration
Applications
·Solar power systems
·Offff-grid power systems
·Commercial vehicles
·Marine applications
·Industrial power supply
·Camper/utility vans
